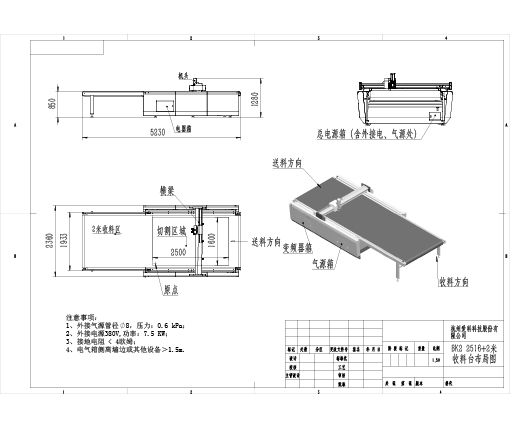

BK2 2516 +2m layout diagram

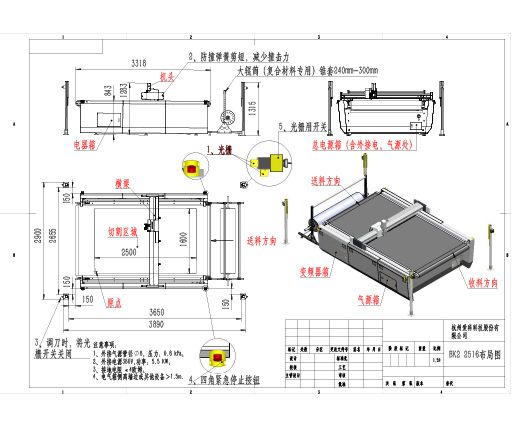

BK2 2516 layout drawing Add grating, emergency stop switch, large roller (for composite material) taper sleeve 240mm-300mm

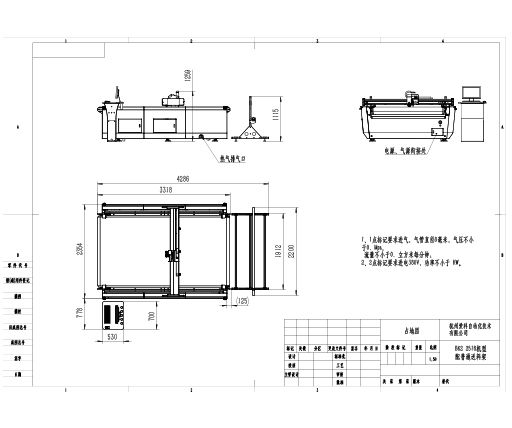

BK2 2516 model with common feeder frame occupies the map without operating table

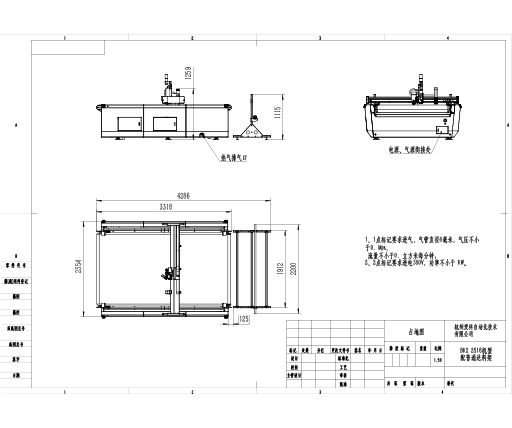

BK2 2516 model with common feeder frame

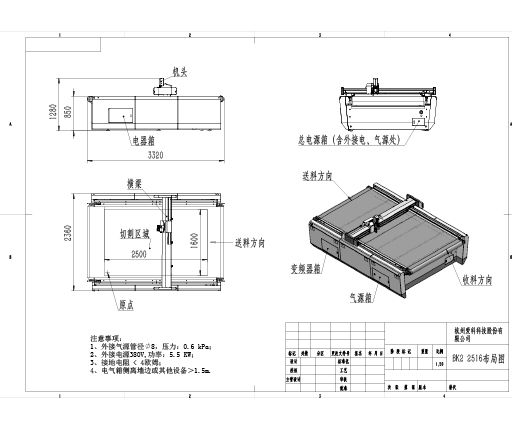

BK2 2516 Standard model layout

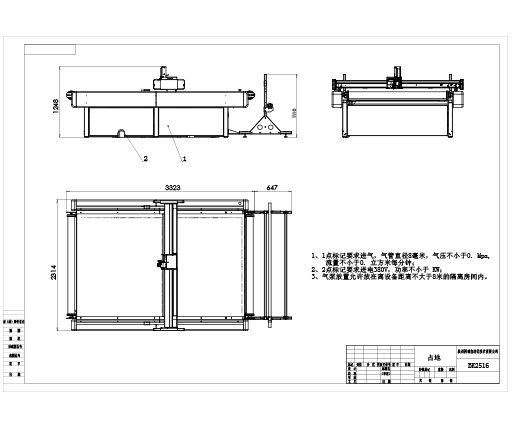

General view of BK2516 (general feeding frame)
